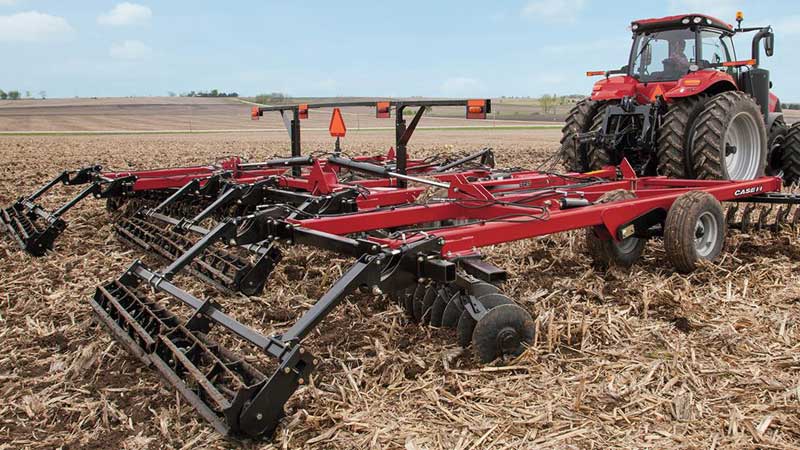

Case IH True-Tandem disk harrows lead the industry in ruggedness and reliability so you can manage heavy crop residue with ease. True-Tandem disk harrow technology combines uniformly distributed pull forces with exclusive Earth Metal blades for optimal tillage performance, even in the roughest of fields. Built on proven Agronomic Design principles, our disk harrows help you effectively manage soil and residue without compaction. Slice through tough residue, uproot root balls and level the soil to create the best possible seedbed for your crop. Bringing you optional Working Widths from 22' 0" - 46' 27, Transport Widths from 14' 6" - 18' 6", with 22" or 26" Disk Blade Diameter and a 7.5" or a 9"Disk Blade Spacing.
CURRENT MODELS: Choose From Two Rugged Models and Three Blade Options
Agronomic Design Features:
Crop Residue Management- Control residue size and distribution to promote faster breakdown and nutrient cycling
Soil Tilth- Break through crusty, sealed-over soils to achieve the proper balance of minerals, air and water.
Seedbed Conditioning- Put the finishing touches on fields by sizing clods and increasing the soil’s contact with residue for maximum decomposition.
FRAME DESIGN:Improve balance and stability in the field with the True-Tandem frame design. The combination of mirror-matched gangs and a rugged, low-maintenance pull-through frame eliminate drift and accommodate higher ground speeds compared with the traditional double-offset frame. LED lights and a high-quality powder coat paint finish keep you in the field longer and your equipment looking good for years to come.
Mainframe and Wings-
Grease-less Bearings-
Durable Design Attributes-
LEVELING & DEPTH CONTROL: Work the soil you want to work. The lineup of True-Tandem disk harrows engages soil to your intended depth without disrupting soil density below the operating depth. It’s a system that’s proven to provide more consistency, even as soil types change across the field. And thanks to an intuitive depth adjustment system, you easily can adjust depth control and leveling to meet the needs of your conditions and fields.
Single-Point Hydraulic Depth Control- Easily adjust operating depth with a single hand crank conveniently located at the front of the machine
Fore and Aft Leveling- Optional hydraulic front-to-back leveling allows quick operator reaction to changes in field conditions.
EARTH METAL DISK BLADES: Our industry-exclusive Earth Metal disk blades help you cover rocky terrain and uneven ground with confidence — even at high speeds. Equally tough and breakage-resistant in all directions, Earth Metal disk blades are proven stronger than ordinary carbon steel blades. Perfect for no-till and minimum-till environments, these disk blades penetrate hard, dry soils to help you break through surface compaction, effectively slicing through fall crop residue or spring weed flush.
Right-sized for Performance-
Built for Longevity-
Crimped-center Disk Blades-
Rollable Disk Blade*- A rollable disk blade offering allows customers who desire the ability to edge roll the disk blade to sharpen. Made of a high-quality alloy with the toughness and durability of boron while maintaining the ability to roll the edge. Note: This offering is NOT* Earth Metal.
Durability and Low Maintenance For Any Field- The True-Tandem gang assembly precisely matches front and rear gang blades for maximum productivity and a smooth seedbed, regardless of field conditions. The 18-degree gang angle paired with the concavity and crimped center of each blade gives you even cutting and mixing action. With more durability and low maintenance features, the True-Tandem disk harrow will get you in and out of the field and ready to plant.
Durability and Low Maintenance For Any Field: The True-Tandem gang assembly precisely matches front and rear gang blades for maximum productivity and a smooth seedbed, regardless of field conditions. The 18-degree gang angle paired with the concavity and crimped center of each blade gives you even cutting and mixing action. With more durability and low maintenance features, the True-Tandem disk harrow will get you in and out of the field and ready to plant.
Bearing Options- Flange-style bearing works well in fields with few rocks and debris
Nodular Cast-Iron Spools- Made from nodular iron, which is stronger than gray cast-iron or steel-fabricated spools
Proven Center Shank Design- A center shank removes the uncut soil between disk gangs to create uniform residue and soil mixing.
New Bolt-and-Clamp Mounting Design- Straight bolts and steel plates around the gang tube add strength and durability.
Reach Seedbed Perfection: Put the finishing touches on your seedbed with the double-edge TigerPaw Crumbler rolling reel. Every bar has two edges to hit large clods twice and tuck residue under the soil’s surface for improved leveling and better seed-to-soil contact. The unique design of the Crumbler ensures each bar is rifled to maintain constant down pressure, while hydraulic cylinders provide easy adjustability from the cab and settings to match any field condition.
TigerPaw Crumbler- The patented Crumbler produces more uniform clod sizing and residue distribution.
Hydraulic Down Pressure- Hydraulic down pressure allows down-force to be applied to the Crumbler and easily adjusted to match field conditions
3-bar Coil Tine Harrow-
Hook to Your Tractor and Go:The rugged True-Tandem frame provides two height options for the hitch, depending on the tractor’s drawbar. Whether going across rugged, rolling terrains or field to field, you’ll be able to easily maneuver your equipment.
Front T-bone Hitch-
Swivel Hose Stand-
Rear Hitch Versatility-
Larger Tires, Less Compaction:Reduce compaction in your fields with large, stubble-resistant tires. Providing a greater footprint, these tandem wheels work independently for a smoother ride and longer life. With the rockshaft mounted directly to the frame, the hubs and tires are more durable and tillage tool more balanced.
Frame-mounted Gauge Wheels- Bolted directly to the frame, these wheels feature an adjustable, one-way pivot design, providing stability and less wobble in normal field conditions.
Walking Tandems- Provide excellent depth control and stability
