Precision Air Carts

Description

Precision Air Carts get superior air seeding, electric drive metering and individual section control with Case IH Air Carts. Tire packages available for ground pressures as low as 14 psi and single-or double-shoot distribution. Available with 2-4 Compartments, Capacity of 350-950bu, with ground clearance of 25" and 12'10"-15'18" in Height without handrails. Maximize the potential of your seed and fertilizer to make the most of short seeding windows with the Precision Air 5 series air carts. Designed with the flexibility to fit your operation, the full lineup of air carts from Case IH helps increase seeding capacity and reduce costly overlaps. Customizable configurations provide the versatility for a variety of crops and fertilizers, while our exclusive metering and seed delivery systems offer greater efficiency.

CURRENT MODELS:

  • Precision Air 2355- The Precision Air 2355 features corrosion-resistant tanks and meters for years of reliable service, even with dry fertilizers.
  • Precision Air 3445- The Precision air 3445's twenty-four volt, independent meter drive motors provide ample power and torque for precise rate control and adjustment.
  • Precision Air 3555- The Precision Air 3555 has a new master shut-off feature that allows for meter servicing without having to empty the air cart's contents.

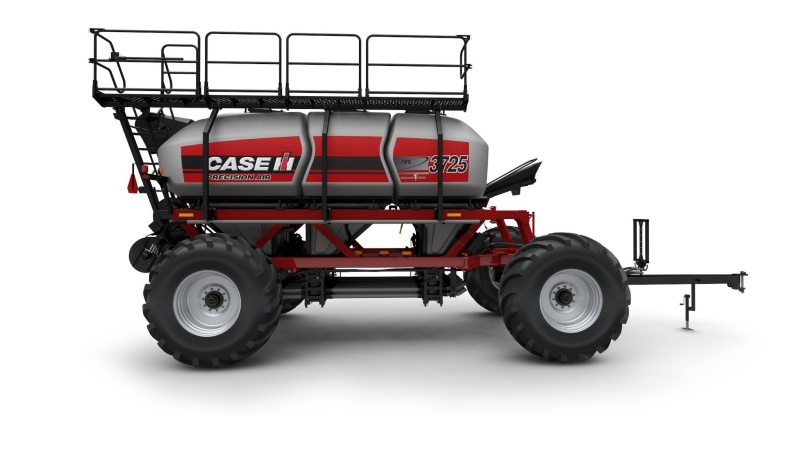

  • Precision Air 3725- The Precision Air 3725 air cart offers a three-tank, tow-behind model, ideal for broad-acre seeding or fertilizer application. More capacity enables growers to spend more time in the field for maximum efficiency.
  • Precision Air 3915- The Precision Air 3915 air cart delivers 915 bushels of capacity, so growers can seed a maximum number of acres and spend more time in the field for optimum efficiency. This three-tank, tow-behind model is ideal for broad-acre seeding or fertilizer application.
  • Precision Air 4465- The Precision Air 4465 has larger tank openings, low-profile lids and heavy-duty interior ladders provide easier access for operators, while a new over-center tank lid lock system ensures a tight seal.
  • Precision Air 4585- The Precision Air 4585 includes new durable, folding stairway system with solid handrails and slip-resistant treads connects with a heavy-duty catwalk above the tanks that keeps the operator up and out of the dusty environment that can occur at the fill hatch level.
  • Precision Air 4765- The Precision Air 4765's new meters have a modular cartridge design that allows each primary run to have its own individual metering segment, making it easier to adjust for different seed or fertilizer sizes.
  • Precision Air 4955- The new conveyor system can fill the Precision Air 4955 in under 15 minutes, which means more productivity with every fill. The conveyor system also provides remote control operation.
  • NEW FOR 2020: Get The Most From Every Plant's Potential, Case IH brings 2 new models into the Precision Air™ 5 series air carts lineup. The Precision Air™ 3725 and 3915 tow-behind models deliver the largest three-tank configurations in the lineup. New enhancements for the lineup of Precision Air™ 5 series carts help producers make every seed count. Model Year 2021 air carts are designed to maximize efficiency with new configuration options and features such as individual tank weigh scales and curve compensation.

    TANK DESIGN: Easy Accessibility Meets Increased Seeding Capacity

    CAPACITY- Increased Productivity with tank capacities range from 350 to 950 bushels and are available in tank configurations with two or three primary compartments.

  • Precision Air 5 Series tanks provide up to 39% more product carrying capacity.
  • Tank Sensors- Tank weigh scales allow you to monitor seed and fertilizer levels in each tank from either an AFS Pro 700 or cart-side display.

  • A seed level sensor is standard in each tank and informs the operator through the AFS Pro 700 when the seed level is low, and an ultrasonic bin level sensor can show tank level at all times.
  • Optional video camera package includes cameras for each tank, plus one rear camera to provide ultrasonic live videos on the in-cab display.
  • Auxiliary Tank Option- Auxiliary Tank Option A fourth steel auxiliary tank option is available for efficient carrying and application of small, low rate crops like canola or micro-nutrients.

  • This option utilizes a pneumatic fill system to reduce seed damage and can be loaded at ground level.
  • Available for the Precision Disk 500 air drills, an optional wireless flow blockage monitoring system uses acoustic sensors to “listen” to the sound of seed and fertilizer flow. Real-time continuous blockage status updates and blockage history tracking help pinpoint issues.
  • Efficiency and Flexibility- Designed with the flexibility to fit your operation, the full lineup of air carts from Case IH helps increase seeding capacity and reduce costly overlaps.

  • Different configurations provide the versatility for a variety of crops and fertilizers.
  • ACCESSIBILITY:

    Lid and Opening- The tank design offers large tank openings, easy-to-grab latch handles and low-profile lids.

  • These features provide unobstructed movement for the conveyor or auger spout for less seed spillage.
  • Staircase and Platform- The durable, spring-loaded folding staircase allows quick access to the tank platform and features solid handrails and slip-resistant treads.

  • The staircase brings you to a large and secure platform for easy access to the tank openings, allowing you to safely monitor the auger and tank fill levels.
  • Platform railings fold down without tools for easy transportation and storage.
  • Parallel Link-

  • Equipped with a deflector to catch seeds attempting to jump out of the trench.
  • Tank Ladder- Internal tank ladders provide convenient, easy access to inspect inside each tank.

  • An extra step bar and removable grab post make getting into and out of the tank easier.
  • FILL SYSTEM:

    Standard Auger- The standard 10-inch-diameter auger has a longer hopper at the bottom for improved access under trucks during seed or fertilizer transfer. Standard on 2355, 3445 and 4465 models, the auger offers mechanical maneuvering and a 29 bu./min. capacity.

  • A deluxe auger system is available with a wireless remote control, allowing effortless starting and stopping of the auger for easier auger positioning to all tank openings. Optional on the Precision Air 3445 and 4465 and standard on the 3555 and 4585 models.
  • No-Take Fill Option- If desired, air carts may be ordered without an on-board fill system such as the conveyor or deluxe auger. This option allows you to build a unit to your specs.

    Conveyor- The conveyor system provides the same remote control operation as the deluxe auger.

  • Patented cam linkage automatically keeps the spout centered over the tank lids.
  • The conveyor system is standard on the Precision Air 4765 and 4955 and optional on the 3555 and 4585 models.
  • OPERATORS ENVIRONMENT: Greater Control From in the Cab these series of air carts is developed to work with the Case IH AFS Pro 700 control center. This 10.4 in (26 cm) touchscreen enables easy monitoring and operation from inside the cab:

  • Application rate and rate control
  • Tank bin level and in-tank camera feed
  • Ladder position and other warnings.
  • Section control system
  • SECTION CONTROL SYSTEM: The exclusive Case IH AccuSection modular section control system can improve your operations with precise and accurate rate control and adjustment. AccuSection technology uses individual electronic meter drives to provide primary run control on a per meter basis. Avoid over-seeding and over-fertilizing with costly overlaps and simply change your setup for different operations.

    CURVE COMPENSATION: Achieve More Uniform Plant Populations in Every Part of the Field

  • Add optional curve compensation to any Precision Air 5 series air cart to ensure proper plant population across the drill in tight turns and corners. With this feature, AFS AccuSection allows each section to apply the correct amount of product as sections speed up or slow down through a turn.
  • FRAME CONSTRUCTION: Rugged and Maneuverable Frame Construction

    Frame Design- A bridge frame construction delivers strength and maneuverability. With both narrow and wide configurations, the frame provides good flotation and stability

    Tires- Tow-Between and Tow-Behind tire flotation packages are designed to keep going in the toughest conditions and reduce compaction for higher yields.

    Hitch- The air cart's hitch options allow it to be towed directly between your tractor and drill or behind your drill for better visibility

    CARTRIDGES AND ROLLERS: Flexibility That Makes Seeding Simple

  • Three different types of color-coded cartridges (narrow, half-width, full-width) and rollers (fine, medium, coarse) give you the ability to plant almost any seed or apply fertilizer.
  • The variety of cartridge and roller combinations are interchangeable which lets you tailor the set-up to lower rates when splitting one product from multi tanks. The air cart design also makes the cartridges easy to remove, change and service.
  • Click Here to download a brochure.

    B&S Enterprises, Inc. Case IH Dealer and Technicians- Ready to handle any service issues to keep you going.

  • Contact B&S Enterprises your local expert to learn more, compare specs or schedule a demo.
  • "CLICK HERE" Check it out on our YouTube page in action.
