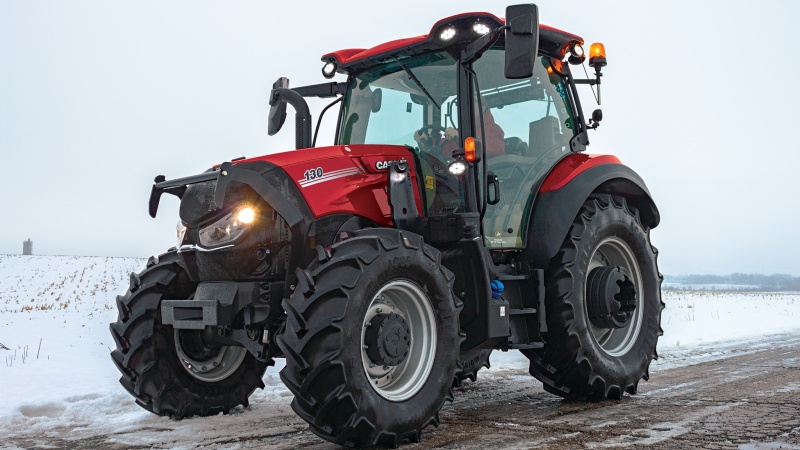

Vestrum Series

Description

The NEW Case IH Vestrum tractors are efficient, flexible, reliable tractors with a variety of options to meet the demand. With power, maneuverability and premium cab comfort in a compact design, the all-new Vestrum series excels in all conditions. Efficient Power, First-Class Comfort and the Flexibility to Take on Any Job Case IH Vestrum series tractors combine maneuverability with premium cab comfort in a compact design without sacrificing the power of a high-horsepower tractor.Striking the perfect balance between compact design, best in class comfort & industry leading power ratings, the new Vestrum tractors offer you the ideal features for increased adaptability in dairy & livestock operations, haying operations, snow removal & specialty applications.

CURRENT MODELS:

Vestrum 100- The Vestrum series 100 tractor features a 4-cylinder, 4.5-L engine, delivering up to 110 hp at 2,200 ERPM rated engine speed.

Vestrum 130- The Vestrum series 130 tractor features a 4-cylinder, 4.5-L engine, delivering up to 140 hp at 2,200 ERPM rated engine speed.

ENGINE: Powered by a 4-cylinder engine with a Wastegate turbocharger delivers more low-speed torque and better engine responsiveness. The powerful engine, paired with the innovative CVXDrive transmission or ActiveDrive 8 transmission guarantees unparalleled power and superior ride quality. The Automatic Productivity Management (APM), ensures the perfect fusion of engine and transmission, giving you a fuel-efficient machine. The 4.5 liter engine has 16 valves for better gas exchange and its 600 hour service interval means your tractor spends less time in the service bay and reduces your total cost of ownership.

FPT, 4.5L 4 cylinder Direct Injection with High Pressure Common Rail System

Transmission Options: A Choice of Transmissions to Fit Your Operation

Vestrum series tractors are available with two transmissions: ActiveDrive 8 dual-clutch transmission and CVXDrive continuously variable transmission. Learn about which transmission is right for your operation.

ActiveDrive 8 Dual-Clutch Transmission- ActiveDrive 8 transmission delivers uninterrupted torque through more working speeds, faster shuttle shifts and simplified shifting. This 24-speed transmission features eight powershift speeds in three electronically shifted ranges.

Auto Shift - Features two modes of automatic shifting: Road Mode and Field Mode. When these modes are active, the transmission will shift automatically by either moving the MultiFunction Handle or depressing the foot throttle.

ActiveClutch II - Allows you to slow or stop your tractor without using the clutch. This is an ideal feature for loader operations, roading, bailing hay or any operation that requires frequent stops.

Memory Shuttle - Remembers the last gear you shifted to in each direction and automatically returns to that gear each time you shuttle forward or reverse. Ideal for any operation that requires you to change directions repetitively

Smooth Shift - Automatically adjusts engine rpm while shifting to compensate for loads. This reduces driveline shock and increases your comfort.

Smart Range Shift - Allows you to change ranges at any time and from any gear by pressing two buttons on the MulitFunction Handle — no need to shift through each gear or use the clutch. Your tractor will select the right gear in the next range based on your ground speed.

CVXDrive continuously variable transmission- The user-friendly CVXDrive continuously variable transmission (CVT) provides smooth, seamless speed changes through varying conditions. Featuring the same technology as our high-horsepower Maxxum®, Puma®, Optum™, Magnum® and Steiger® series tractors, the CVXDrive continuously adjusts to maintain the desired speed under any load. It’s an ideal transmission for loader work, baling hay or roading.

Standard CVXDrive Split-Throttle Control - An easy-to-set and easy-to-use split-throttle design allows for fuel savings during lower power demands. Simply set working speed and RPM range, and the CVT automatically selects the most efficient transmission ratio for the desired speed and load — no manual clutching or shifting needed.

Easy Start and Active Stop - Provides a powered neutral that prevents tractor movement, even with fully loaded trailers on steep slopes. This feature also is useful with attaching implements to the hitch.

OPERATORS ENVIRONMENT: Premium Comfort Zone

With the Vestrum tractor, Case IH brings you the premium comfort you’re used to from larger models to the mid-range 4-cylinder segment. Step into a workplace where you can simply feel comfortable. Featuring easy entrance from both sides of the cab and a panoramic high-visibility roof panel. Optional suspended cab provides a smooth ride all day long.

MULTICONTROL ARMREST: Everything Within Reach

The Vestrum features the same control layout with the MultiControl Armrest that is available on Case IH tractors from Steiger® to Puma®. If you already work with Case IH models then you are probably already familiar with these controls.

MultiControl Armrest-

The most common functions are controlled from the ergonomically optimized MultiControl Armrest and the integrated control panel. This Case IH exclusive armrest has a wide range of functions all at your fingertips for comfort and efficiency. Both elements are integrated into the control arm, which is also available as an electrically adjustable unit. Using the knobs under the armrest cover, you can set a range of parameters, such as flow rate and time control, and front hitch lift management.

Electronic Joystick-

The electronic joystick is your first choice for any work involving the front loader and offers many premium features that make you more efficient and productive including changing speed range and gears and the ability to control hydraulic functions.

Standard and Advanced Joystick-

Two joystick options are available for the Vestrum tractor. The advanced joystick can shift all 24 gears on the ActiveDrive 8 transmission. On the CVXDrive transmission, the advanced joystick is used to switch between preset speeds. You don’t have to switch to the MultiControl Handle when shifting gears or preset speed ranges.

MultiControl Handle: You can control the following functions using the MultiControl Handle:

Shuttle shift forward/reverse

Speed range change

Raise/lower rear hydraulics

Headland management control

Setting target speed

Other AUX functions

HITCH AND HYDRAULICS: Maximum Flexibility The Vestrum tractor reaches peak engine power at 1,900 rpm. If you have less demanding work that needs to be done, you can fall back on more fuel-efficient economy PTO speeds.

PTO: Designed for all main jobs in and around the farm, the available PTO configurations reflect this need for flexibility. The Vestrum comes standard with three rear PTO speeds. Available speeds are 540/540E/1,000.

HYDRAULICS: Hydraulic pump of 28.5 gpm provides more flow at lower engine speeds and pressure-flow compensation (PFC) systems are best for operations that require more flow or need continuous flow, enabling the Vestrum tractor to take on a variety of applications.

HITCHES: Front 3-point hitch, capable of handling a heavy load, allows implements to be mounted on the front of the tractor to cover more acres per hour. Rear 3-point hitch, with a lift capacity of up to 6,700 pounds, offers the flexibility to meet the needs of many applications.

AXLE & UNDERCARRIAGE: NEW class 1.75 front axle with a hub bearing, new ring gear flange/support system that has been increased in size. NEW king pins instead of spherical joint in order to improve steering performance. Unrestricted front axle weight is 8,175 lb. (3700 kg).

Inhouse designed front axle + suspension.

2 models: 1.75 un- & suspended.

MFD is electro hydraulically engaged.

Managed automatically according to speed and steering angle.

Exceptional ground clearance to protect valuable vegetable crops.

Reduced soil compaction thanks to a wider footprint with 600/65R38 tires.

Increased traction thanks to a clearer surface area.

ADVANCED FARMING SYSTEMS (AFS): Compatible with optional Advanced Farming Systems (AFS) and ISOBUS technologies, the Vestrum series tractors can be customized for your specific operation.

LOADERS & ATTACHMENTS: The Power to Handle Any Loader Work A loader or an attachment turns a tractor into a versatile, powerful workhorse.

Loaders- The Case IH L103 loader meets the needs of the full line of Vestrum series tractors and features fast, easy mounting and rugged, durable construction. If your choice is a Case IH Vestrum, the L103 is a perfect match. Work with your Case IH dealer to identify additional loader options, attachments and accessories.

Mounting- Quick, easy mounting is a hallmark of Case IH loaders. Your Vestrum tractor arrives with all optional loader mounting brackets, a grill guard, mid-mount valves, in-cab joystick and hose kits.

Attachments- Your Case IH dealer offers a full line of attachments to help you get the most productivity from your loader. Bucket options, forks, grapples, spikes, grips and cutters each attach quickly and easily.
