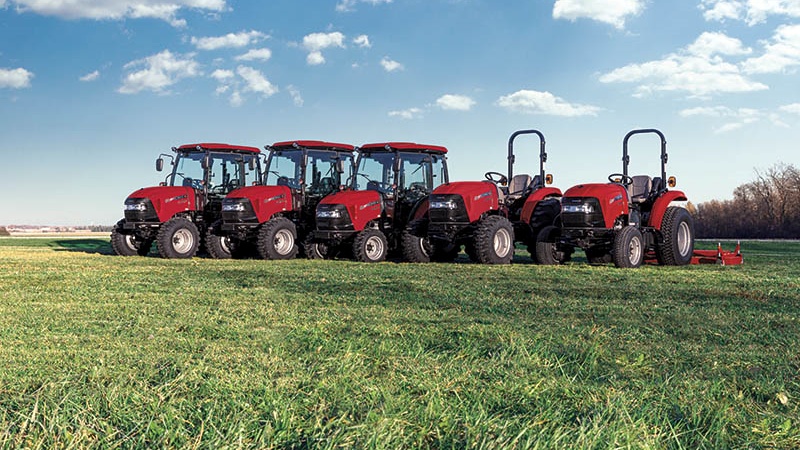

Compact Farmall C Series

Description

Compact Farmall C Series is a Deluxe, full-featured compact Farmall C series tractors deliver an exceptional, customizable operating experience.Compact Farmall C deluxe series tractors are go-to workhorses, because of their size, maneuverability and physical capabilities. From moving mulch with a loader to blowing snow or digging with a backhoe, they are built tough and with plenty of power to get the job done.

New compact Farmall C "Series II" tractors come standard with a 6-year extended warranty. That’s 72 months with peace of mind at no additional cost. See dealer for details.

CURRENT MODELS:

  • Compact Farmall 35C- The compact Farmall 35C offers versatility in a well designed package.
  • Compact Farmall 40C- Featuring 40 HP and up to 34 PTO HP, the compact Farmall 40C is designed to perform a wide variety of tasks.
  • Compact Farmall 45C- The compact Farmall 45C is the right size for a large variety of tasks. Featuring 45 HP and up to 38.2 PTO HP, it can adapt to your operation's needs.
  • Compact Farmall 55C- The compact Farmall 55C features 55 HP, up to 46.7 PTO HP and the options of a ROPS or cab operator environment.
  • ENGINE: More Power for every chore with a turbocharged, 3-cylinder, 1.9-L engine delivers increased power across the Compact Farmall C series tractor lineup. Models range from 35 to 55 hp (28-47 PTO hp) a 5-hp increase over previous models. These engines also provide greater displacement and up to 20 percent greater torque output.

    Common Rail Injection- The latest fuel-injection technology offers several advantages, including improved power performance, increased efficiency and cleaner emissions.

    Tier 4 B/Final Compliant- Engines use an internal Exhaust Gas Recirculation (EGR) system to meet Tier 4 B/Final requirements. A 50-hour Diesel Particulate Filter (DPF) regeneration interval helps keep your workday humming.

    TRANSMISSION OPTIONS: Transmission Options For Your Operation. Choose the standard mechanical shuttle transmission or the popular 3-range hydrostatic option.

    Mechanical Shuttle Transmission- The standard shuttle transmission features 12x12 (three nonsynchronized ranges, four synchronized speeds) on Compact Farmall models 35C and 40C, and 16x16 (four nonsynchronized ranges, four synchronized speeds) on Compact Farmall models 45C and 55C.

    Hydrostatic Transmission- A 3-range hydrostatic transmission is available on all four models. An easy-to-operate, 2-pedal system, electric cruise control and infinite operating speeds makes this option popular choice when considering operator convenience and fatigue. It’s an excellent choice for tasks, such as loader work and mowing, requiring frequent directional and speed changes.

    OPERATORS ENVIRONMENT: Whether you prefer the great outdoors or a climate-controlled workspace, you can count on the deluxe features of the Compact Farmall C series tractors. They create a work environment where comfort and convenience fuel your productivity, all day long.

    Open Platform- A large, obstacle-free, step-through operator’s platform provides easy entry and exit and gives you plenty of room to maneuver.

    Noise Reduction- A thick rubber floor mat dampens noise and vibration, reducing operator fatigue, and helping you stay more productive all day.

    Deluxe Seat- A comfortable seat can help those long days seem just a bit shorter. Armrests and an adjustable backrest let you personalize your seat. An incline-plane mount lets taller operators position the seat for maximum comfort.

    Tilting Steering Wheel- Position the steering wheel precisely for your comfort zone. Or simply tilt it up and out of the way for easier entry and exit.

    Constant Engine Speed Button- For tasks that require a steady engine rpm regardless of load or ground speed, such as powering a spray pump or other PTO-driven implements, a flip of the CES button holds engine rpm at the speed you select. This prevents engine racing or dragging and provides consistency, whether you’re controlling weeds along the driveway or around outbuildings or mowing rugged terrain.

    Factory-installed Loader Joystick- A loader turns your tractor into a versatile, powerful workhorse. Our loader joystick comes standard from the factory and is integrated into the right-hand console for easier operation and greater productivity.

    Handy Storage- Whether a place for hitch pins, a pair of pliers or an afternoon snack, a handy seat-side storage compartment within easy reach fits the bill. Plus, you’ll never leave the farmstead without your operator’s manual and other important documents using the convenient seatback storage space.

    Unobstructed Views- The operator’s platform provides excellent all-around visibility from the tractor seat, including rear visibility to the drawbar, PTO and 3-point hitch. The stylish, sloped hood on Farmall series tractors allows clear, forward sightlines to the front wheels, loader and other mid- and front-mount attachments.

    Instrumentation- Well-placed controls and the design of the instrumentation dash provide easy access without inhibiting visibility.

    Protection With Flexibility- A two-post ROPS structure provides protection without sacrificing visibility. The structure is foldable so you can complete tasks in low-overhead areas, and an optional sunshade canopy provides sun protection on long, hot days.

    Room to Move- Our comfortable cab offers the ultimate work environment. With 63 cubic feet of interior space, the spacious, open platform and large doors make for easy entry and exit and give you plenty of room to maneuver.

    Climate Control- A comfort-creating HVAC system lets you customize your workspace. The rear window opens for fresh air circulation and enhances visibility.

    360-Degree Sight Lines- Large windows and well-designed structural support clear the way for 360-degree sightlines. A high-visibility roof panel keeps the loader bucket in sight. And an interior sunshade and multiple rearview mirrors improve visibility while reducing fatigue.

    PTO, HYDRAULICS & HITCHES: Where the Work Gets Done. Sure, the engine, operator platform and overall aesthetics help make the tractor. But it’s how implements attach, function and power up that make your tractor a versatile workhorse. You can count on Compact Farmall C tractors for features, plus reliable ease of use for efficient productivity.

    PTO- Mid-mount PTO: Power mid- and front-mount equipment, such as mowers and snow blower. A factory-installed mid-mount PTO comes standard.

  • Speed Options: A rear, independent 540-rpm PTO with electro-hydraulic engagement comes standard and drives all your 3-point-mount and pull-behind implements. The mid-mount PTO is manually engaged, but controlled with electro-hydraulic PTO switch and operates at 2,000 rpm.
  • Hydraulics- Flow Rate: An 8.2 gallons-per-minute hydraulic flow gives you the power you need for all kinds of heavy lifting, from loaders and backhoes to rear blades and rotary tillers.

  • Loader Lift Capacity: Compact Farmall 35C and 40C paired with Case IH L350A loader: 1,540 lb. at bucket pivot point, Compact Farmall 45C and 55C paired with Case IH L360A loader: 1,830 lb. at bucket pivot point
  • Remotes: All Compact Farmall C series tractors arrive from the factory with a standard rear remote and mid-mount valve. For even greater flexibility, add an optional second rear remote. Plus, optional color-coded rear remote levers and couplers simplify hookup.
  • Hitches- 3-point: Telescoping stabilizers and flex-end lower links make attaching and hooking up implements fast and easy. A single turnbuckle levels attachments. Mechanical positioning and an adjustable drop rate give you even greater control.

  • Hitch lift capacities: Compact Farmall 35C and 40C: 1,808 lb., 24 inches behind the pin, Compact Farmall 45C and 55C: 2,756 lb., 24 inches behind the pin.
  • Extendable Drawbar: A two-position drawbar lets you customize hitched implements to your desired position or move the drawbar to keep it out of the way when not in use.
  • AXLE & TIRES: Traction Options For Ideal Operation. All models feature standard 4WD for improved traction and increased power to the ground. ROPS models include fenders and handles for easy entry and exit.

  • Bar Tread R1- Optimal traction for agricultural applications
  • Turf Tread R3- Least amount of ground disturbance; ideal for mowing and grounds maintenance​
  • Industrial-tread R4- A longer-life option for use on hard surfaces and a smoother ride while roading
  • MAINTENANCE & UPTIME: Focus On The Task At Hand with Case IH compact Farmall C tractors boast some of the best maintenance intervals in the industry.

    Easy Access- Regular maintenance points are accessible without removing shields or opening the hood. A ground-level fuel tank makes fueling easy

    Ground-Level Service- Easy maintenance with ground level access to engine, transmission, hydraulic and axle fluids.

    Uptime- A 300-hour oil-change interval reduces downtime and maximizes uptime.

    6- Year Extended Warranty- New compact Farmall C "Series II" tractors come standard with a 6-year extended warranty. That’s 72 months with peace of mind at no additional cost.

    B&S Enterprises, Inc. Case IH Dealer and Technicians- Ready to handle any service issues to keep you going.

    LOADERS & ATTACHMENTS: Exceptional Lift Capacity Meets Great Visibility! A loader or an attachment turns a tractor into a versatile, powerful workhorse. Plus, Curved-boom loader arms let you easily see to the top of the bucket and around the front tires for maximum visibility.

    Loaders- The Case IH L300A loader series is designed specifically for use with your Compact Farmall C tractor. Each tractor arrives from the factory with standard, loader-ready features, including a mid-mount hydraulic valve and console-integrated joystick controller.

    Mounting- Each loader includes mounting brackets for its corresponding tractor. Quick, easy mounting is a hallmark of Case IH loaders. Simply drive the tractor into the loader, put in the pins, attach the hydraulics and get to work.

    Attachments- Your Case IH dealer offers a full line of attachments to help you get the most productivity from your Compact Farmall C series tractor. Implements are quick and easy to hook up and include front-, mid- and rear-mount options, ranging from mowers and rotary tillers to blades and snow blowers to backhoes and rotary cutters.

    Click Here to download a brochure.

    B&S Enterprises, Inc. Case IH Dealer and Technicians- Ready to handle any service issues to keep you going.

  • Contact B&S Enterprises your local expert to learn more, compare specs or schedule a demo.
  • "CLICK HERE" Check it out on our YouTube page in action.
