Description
Case IH Tiger-Mate Field Cultivators set the standard for seedbed preparation. Our next-generation field cultivator series delivers agronomic advantages with each pass, helping you capitalize on your planter’s ideal productivity levels to achieve maximum yield potential. Bringing you optional Working Widths from 22'2"- 60'6", Transport Widths from 14'11"- 18'7", with 41- 111 Shanks and a 6.0" Shank Spacing.
CURRENT MODELS:

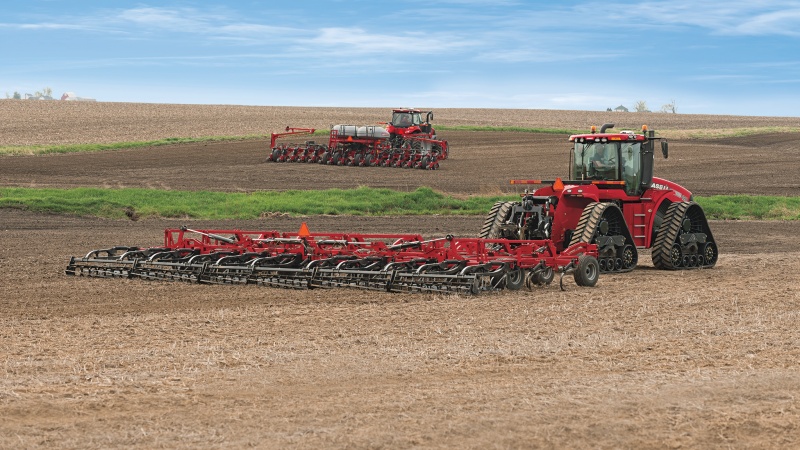

Tiger-Mate 255- Look to the Tiger-Mate 255 for the durability and Agronomic Design features you need to create a high-efficiency seedbed for more efficient planting and maximum yield.
FIELD CULTIVATORS: The Tiger-Mate 255 field cultivator creates a high-efficiency seedbed for the most accurate seed placement. From crop residue management to soil tilth to seedbed conditions, we designed this field cultivator with an eye on improving your agronomic performance.
FRAME DESIGN: Rugged and Reliable From End to end
Our engineers tested and analyzed every component of the Tiger-Mate 255 frame against rigid standards. The result: Stronger construction, yet with the greater flexibility necessary to stand up to tough, fast-changing conditions.
FRAME CONSTRUCTION: Higher Productivity
Greaseless bearings displace 20-40 grease points, depending on model.
Time saved by greaseless bearings equates to up to 40 acres of productivity.
Versatility-
Exclusive, welding bridge frame stands up to variable conditions under higher field speeds.
Frame designed to flex through difficult soil conditions.
Increased Efficiency-
Wings fold together quickly, getting you in and out of the field faster.
25-inch under-frame clearance keeps the residue flowing at higher speed.
Built-in Longevity-
Durable construction and welded cylinders results in greater reliability.
Folding wings distribute load for longer frame life.
WHEELS & TIRES: Durability
Radial stubble-resistant tires are standard on the Tiger-Mate 255.
Extra durability pays off in the field and during transport
Smooth Ride-
Walking tandems and gauge wheels on the main frame and wings.
Enhances stability and reduces compaction, wing bounce and nosing.
Increased Footprint-
Radial tires have up to a 70 percent increase in footprint, over bias ply tires.
Improves flotation and reduces compaction.
Extra Stability-
Radial Stabilizer wheels on every wing section provide additional stability and levelness over obstacles.
Optional pivoting stabilizer wheel on wing sections for contour farming.
HITCH: Floating Hitch
Allows the Tiger-Mate 255 to operate independently of the tractor.
Enhances ground following for consistent depth across terrain.
Available on double-fold models.
Rear Hitch-
Accommodates additional towed conditioning system.
Minimizes passes in seedbed preparation.
Available on all models.
T-Bone Hitch-
Provides a tighter turn radius.
Standard on all models.
Choose Your Hookup-
Choose electronic or hydraulic hookups to match harrow options and towing needs.
LEVELING & DEPTH CONTROL: Fine-Tune Your Unit For Any Field
Quick and Easy Depth Control
Adjust depth across a variety of fields and conditions with a single-point hydraulic depth control system. There is no need to manually adjust depth on each wing as the system maintains equal depth across.
No-Tool Machine Leveling.
Achieve fast and easy machine leveling, both side-to-side and fore-to-aft with turnbuckle adjustments. Requiring no tools, just use the built-in handle cranks for effortless adjustments.
SWEEP DESIGN: Sweeps That Will Keep You Up and Running Acre After Acre Built with Case IH Agronomic Design principles, the Tiger-Mate 255 features our exclusive split-the-middle sweep pattern and proven sweep designs. The results? Better soil tilth, healthy root development, and optimal soil and residue incorporation.
Split-the-Middle Sweep Design-
With a 5-bar frame, the first three shank rows take full cuts through the soil, while the two rear shank rows take smaller cuts to remove the middle.
Features 26-inch side-by-side shank clearance for improved residue flow.
With the 6.5-inch shank spacing, this sweep pattern ensures 100 percent sweep coverage.
Durable, Long-Lasting Sweeps-
Made from high-strength Earth Metal alloy steel composition.
Unique rear-flowing parabolic design creates superior soil and residue flow.
Longer wear life allows for less-frequent replacement and maintenance.
Hard and durable without brittleness to stand up to the toughest conditions.
Sharp, forged cutting-edge maintains its edge throughout its life span.
Sweep Options-
Maxxi-Point provides better scouring in wet conditions forged cutting edges for reduced draft load; and improved penetration from the extended nose and ½ inch wear point.
Maxxi-Grip has a lower-angle pitch, 1-inch wear tip, two-part knock-on design that mounts to a heavy-duty adapter for easy installation and added strength.
Maxxi-Point Plus has the same design as the Maxxi-Point but with a two-part design and mounts to a heavy duty adapter for easy installation and added strength.
SHANK ASSEMBLY: Balance Force and Flexibility For a High-Efficiency Seedbed The workhorse component of the Tiger-Mate 255 field cultivator is the superior shank assembly, combining force and flexibility to support field speeds of up to 10 mph. Thicker shanks, a beefed-up shank guard channel and increased holding power help you manage fast-changing springtime field conditions.
Better Soil and Residue Management-
Swept back, high-concavity shank design helps soil ramp up and explode higher to effectively mix particles, break down tough clods and level the soil.
Thicker, stronger shanks — 11/16-inch compared with the previous 5/8-inch — match to spring pressure for ideal performance.
Greater residue throughput thanks to 6.5-inch shank spacing that ensures better soil mixing and improved residue distribution.
Increased Spring Force-
Greater spring force delivers a 20% increase in holding power, allowing the field cultivator to penetrate hard soils, even at higher speeds.
Proportional increase in spring force and shank thickness keeps sweeps parallel to the ground for a consistently flat subsurface floor, more accurate seed placement and uniform seedling emergence.
Enhanced Durability-
Shank guard channel ensures stability through turns and provides even loading and added durability.
A 5/8-inch main shank pivot bolt holds tight to stabilize spring pressure and improves the durability of the dual bushing pivot point.
Low-maintenance features include clamp-style shank mounts, single-bolt installation, welded cylinder and grease-less bearings.
FINISHING TOOLS: Achieve the Perfect Finish Multiple finishing tool options on the Tiger-Mate 255 field cultivator allow you to select the perfect finish for your soil type and farming practices. With industry-leading down pressure consistency, our Advanced Conditioning Systems (ACS) harrows are proven to maximize seed-to-soil contact in the final pass before planting.
4-bar Tiger-Tine Harrow-
Three tine angle position adjustments for flexible soil finish.
Indexed tines improve soil leveling.
Parallel linkage and non-linked tine bars eliminate depth and level setting.
2-bar Tiger-Tine ACS Harrow With ACS Roundbar Crumbler-
Provides clod sizing and seedbed forming.
Indexed tines improve soil leveling.
Parallel linkage and non-linked tine bars eliminate depth and level setting.
Ideal for mellow or sandy loam soils found in prairie type soils.
3-bar Extreme Tiger-Tine ACS Harrow With Spring Down Pressure-
With three bars and twice as many tines, this option improves clod sizing and soil leveling, even on tough soils.
Extreme Tiger-Tines are redesigned for maximum flexibility, allowing residue to filter through the tines.
Four precise tine angle settings, convenient handle and quick pin allow tines to be adjusted to the soil.
Large 14-inch TigerPaw Crumbler rolling reels pulverize the soil for a smooth seedbed surface.
3-bar Extreme Tiger-Tine ACS Harrow With Hydraulic Down Pressure-
This option, paired with the TigerPaw Crumbler, has all the advantages of the 3-bar Extreme Tiger-Tine ACS harrow, but with hydraulic down pressure.
The Crumbler may be placed in float or lifted on the go to avoid wet spots.
The hydraulic down pressure system offers independent adjustment of each section to easily match down-force with field conditions.
This harrow is ideal for soils with heavy residue and tough clods.
3-bar Spike-tooth ACS Harrow With Spring Down Pressure-
Paired with the Case IH TigerPaw Crumbler, this high-iron harrow aggressively breaks up clods, evenly distributes crop residue and levels the soil for a smooth finish.
The larger formed bar on the Crumbler adds clod-busting power and excellent durability.
Best choice for tough clods in forest soils prone to cloudiness.
3-bar Spike-tooth ACS Harrow With Hydraulic Down Pressure-
Paired with the Case IH TigerPaw Crumbler, this hydraulic down pressure system offers independent adjustment of each section to easily match down-force with field conditions.
The durable Crumbler busts tough clods with ease.
The Crumbler may be placed in float or lifted on the go to avoid wet spots.
This harrow option provides even crop residue distribution and excellent soil leveling.
AFS TECHNOLOGY: Monitor Agronomic Quality With AFS Soil Command Proven and dependable AFS components integrated into the Tiger-Mate 255 field cultivator match the performance and ruggedness of Case IH tillage tools for increased durability, and in-cab controls for each system component allow operators to make every inch of the field an ideal crop environment.
Coordinated Control-
AFS Soil Command allows the operator to precisely coordinate every component of their True-Tandem vertical tillage equipment to optimize all machine settings as field conditions change. When the disk frame depth is adjusted, all other functions of the machine — such as crumbler pressure and fore and aft levelness — react to remain optimized for peak agronomic performance.
Operator Efficiency-
Ease of operation with AFS Soil Command allows operators to easily make the right agronomic adjustments when and where conditions dictate. Adjust each system component individually or record a group of preferred settings so the operator can return to a given set of adjustments, depending on field conditions.
Optimize Every Pass-
Proven and dependable AFS components integrated into True-Tandem vertical tillage iron match the performance and ruggedness of Case IH tillage tools for increased durability, and in-cab controls for each system component allow operators to make every inch of the field an ideal crop environment.
