Description
L300A Series Loaders are compatible with compact Farmall Series tractors, and offer great visibility to the bucket, as well as durable curved boom arms. Whether you need to stack Hay, Manage a Warehouse or Move Material at a Job-site, Case IH offers the loader built to help you power through your toughest tasks. Built tough to take on the twisting forces of heavy duty loader work. Case IH loaders install and remove in minutes and let you switch easily between attachments. See which model fits your Case IH tractor.
CURRENT MODELS:
L340A- Compatible with compact Farmall 30A, 35A and 40A tractors.
L350A- Compatible with compact Farmall 30C, 35C, and 40C compact Farmall 45C CVT and 55C CVT tractors.

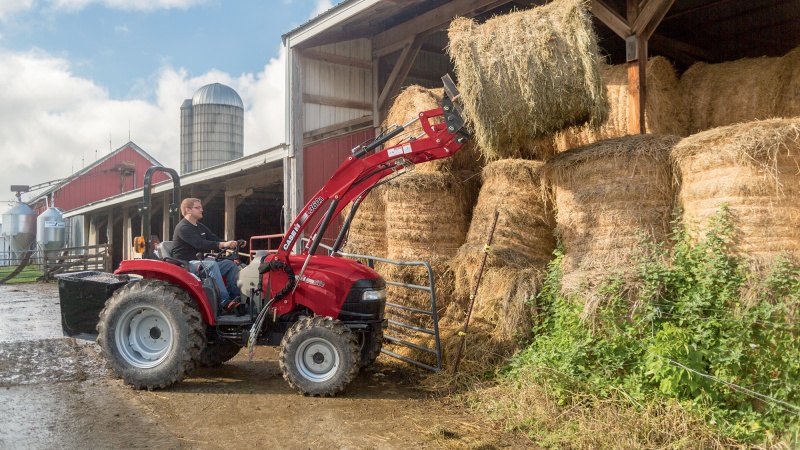

L360A- Compatible with compact Farmall 45C, 50C and 55C tractors.
KEY FEATURES INCLUDE: Key Features of the L300A Series Loaders Include
Curved Boom Loader Arms- Let you easily see to the top of the bucket and around the front tires.
Provides greater strength with less weight vs. traditional dog-leg designs.
Loader Mounting Brackets- Are fully compatible with other attachment, including front-mount snow blower, blades or broom.
Mid-Mount Frame- Makes loader connecting and disconnecting fast and easy.
Makes servicing the tractor engine, radiator and battery quick and simple.
Four-Bar Linkage- Heavy-duty reinforcements for greater strength.
Large, rectangular, loader torque tube for better durability.
Construction-grade, 1-inch, non-rotating pins for easy servicing.
Available four-bar linkage if you demand
Greater dump and rollback angles
Fuller filing and easier emptying
Quick-Attach System- The Quick-Attach face-plate allows you to switch easily between attachments, such as:
Buckets
Multi-Use Forks
Pallet Forks
Bale Probes
Deluxe Controller- Stay in Total Control with the Deluxe Controller System
Gives you right hand total control of the front-mounted attachments.
Rugged Durability- Built on the Case IH reputation for rugged durability, we’ve found ways to make the L300A series loaders even stronger. A chambered and embossed arm design increases strength. Cast and forged components add even more strength at critical stress points, helping to ensure lasting reliability and a lower cost of ownership.
ATTACHMENTS: Case IH offers you what you need to attach your loader to get the job done. See Photos and descriptions on Loaders & Attachment Menu
Bale Spear- Great for handling round bales. The longer center tine safely transports the bale and the two shorter lower tines maintains bale control.
Combo Bale/Pallet Fork- The rotating steel tubes are mounted on two powerful stone fork tines and are hydraulically adjustable sideways. During bale handling, the steel tubes roll carefully in under the bale.
Deluxe Square Bale Fork- The bottom box section is hinged, allowing you to lock the tines in the upright position for safety while driving. Deluxe Bale Extension and Large Bag Lifter can be attached to the Deluxe Square Bale Fork for increased productivity.
Heavy Duty Bale Split- Transport and split bales. Both straw and silage bales fall apart in two pieces, simply and smoothly without complicated extra hydraulics.
Pallet Fork Bale Spear- Well suited to handle round bales. The longer tine is used to safely transport the bale. The shorter tine keeps the bale from rotating.
Standard Square Bale Fork- Simple, robust implement for both round and square bales.
Manure Fork- Our manure forks have specially hardened, durable bottom beam. The tines are fitted before painting the implement - metal touches metal. The tines are tightened to a very high torque. All-in-all this gives you an implement with a long service life.
Stone Fork- Potentially fill the implement without dropping any stones contained in the bucket. At the front, special downward-angled tines made of Hardox steel are installed. After many hours of work, these can easily be replaced.
Heavy Duty Bale Grip- Well suited for smaller square bales. The implement arms distribute the pressure evenly over a large area, and this ensures careful handling of the bales.
Grading Bucket- The low back plate and the long, strong base allows the driver perfect visibility to the tip of the bucket. The bucket is supplied with a powerful cutting edge.
Heavy Duty Round or Square Bale Grip- Great for handling wrapped square and round bales. The implement arms are extremely stable sliding plates, which move along the main frame. When stacking, it is possible to lock either the right or left arm, which makes for easier work.
High Tipping Bucket- High tipping buckets are used for handling high volume materials at high levels, for example for loading grain, grass seed, beet or wood chips.
Standard Round Bale Grip- Both the right or left arm can be locked independently, making it possible to stack bales tightly. The implement arms are designed so that it is easy to reverse out from the bale.
Light Duty High Capacity Bucket- This bucket series is suitable for handling grain, manure, grass seeds, wood chips and other materials with a low volume weight. The buckets have two vertical reinforcements along the implement hooks.
Standard Duty Bucket- The soil bucket the most popular in the range can do everything. The short bucket bottom makes the bucket strong and well suited to heavier tasks. The three large buckets have an extra profile and round pressed back plate across the full width
Standard Duty Value Series Bucket- Ideal for lighter duties, this bucket is an excellent choice. The bucket is designed for customers who value functionality ahead of technical benefits.
Heavy Duty Bucket- The heavy duty buckets have thicker cutting edges, wider and longer bottom reinforcements, and an extra angle reinforcement inside the bucket next to the implement hooks.
Standard Duty High Capacity Bucket- The series is aimed at users who require a large volume. The generous volume measurements are achieved by designing the bucket deeper and taller. All models have double profiles in the bottom as well as along the implement hooks.
Heavy Duty High Capacity Bucket- These volume buckets are intended for professional users, with larger tractors, who drive a lot and/or lift heavy loads, and demand exceptional capacity and durability
Heavy Duty Bucket with Teeth- Soil bucket with teeth. Same design as Series H.
Round Bale King Bucket and HD Grapple- Used primarily for handling round bales, loose hay, twigs and branches, loose silage, manure, and general bucket work. Teeth, protective mesh and grapple arm can easily be removed when only the bucket is needed.
Pallet Fork Log Grapple- Suitable for 2200 lbs, 3500 lbs and 5500 lbs pallet forks.
Pallet Forks- Wide load-bearing and very stable.
Silage King Block Cutter- This implement leaves a clean cut surface in the silo. This prevents air and heat generation, critical for the quality of the silage.
Silage King Bucket and Grapple- Primarily used for silage handling. The side ends are tapered. A relatively short base makes it easier to fill the entire bucket.
Silage King Extreme Duty Bucket and Grapple- This is a very powerful implement with improved cutting quality, higher strength, and very high working speed.
Silage King Fork and Grapple- The close tine distribution almost eliminates the spillage of silage. The tines are mounted in a specially hardened box which does not turn or deform under load.
Big Bag Lifter- For safe handling of large bags. The hook can easily be seen from the driver’s seat.
Skid Steer Quick Attach Device Adapter- Allows skid steer loader style implements to connect to Euro style loader quick attach devices.
Ballast Box- Use the counter weight to properly ballast your machine to maintain weight on the tractor’s rear axle. The coupling axle allows for easy connecting and disconnecting of the implement.
3-point Linkage- This implement can be used like the tractor’s 3-point linkage to help move some implements around the farm.
