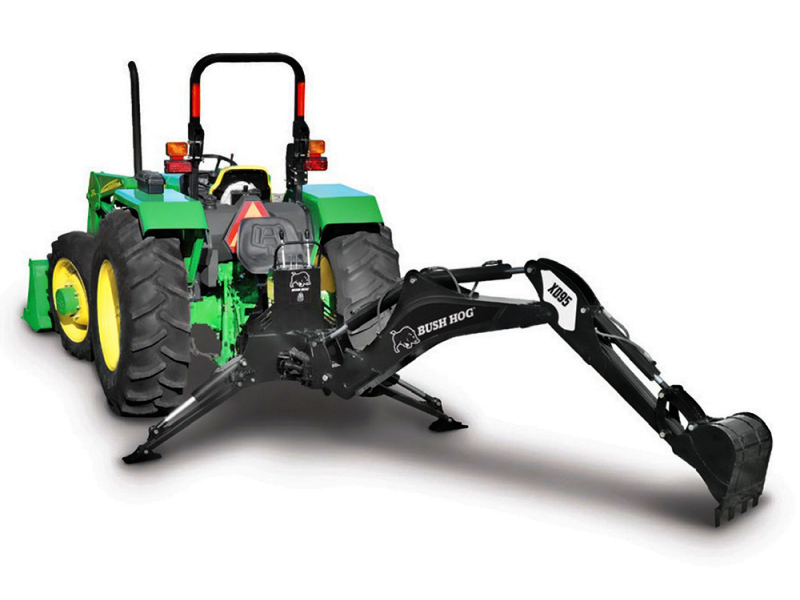

XD95 XD SERIES BACKHOE

Description

BUSH HOG® XD95 XD SERIES BACKHOE Break ground, not your back! Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for digging footers, trenches and all general landscaping and construction needs, the XD series backhoes deliver value and strong performance to your operation. For contractors and landscapers that need to dig deep, but not in their pockets, the Bush Hog® XD95 makes the grade. The large XD95 extends the usefulness of 30-100 HP tractors with digging capabilities of 9 feet deep. Trenching for footings and excavating to spec becomes quick and easy without the added expense of a single-purpose excavator. The digging bucket is built using AR400-strength steel, ensuring rugged longevity.

PERFORMANCE FEATURE:

  • TRANSPORT HEIGHT (WITH BOOM FULLY RETRACTED)- 92”
  • TRANSPORT WIDTH (WITH STABILIZERS UP)- 42½”
  • LOADING HEIGHT (BUCKET AT 60° ROTATION)- 89”
  • GROUND CLEARANCE- 10 1/2”
  • TRANSPORT LENGTH- 81”
  • TRANSPORT WEIGHT (BASE UNIT ONLY – NO BUCKET OR MOUNTS)- 850 LBS.
  • DIGGING DEPTH (2 FT. FLAT BOTTOM)- 9’4”
  • OVERALL OPERATING HEIGHT (FULLY RAISED)- 135”
  • REACH FROM SWING POST- 141”
  • BUCKET ROTATION- 180°
  • SWING ARC- 180°
  • STABILIZER WIDTH (SPREAD)- 89”
  • STABILIZER WIDTH (TRANSPORT) - 42½””
  • OPERATING PRESSURE- 2250 PSI
  • SAE* DIPPER BOOM DIGGING FORCE- 3200 LBS.
  • SAE* BUCKET DIGGING FORCE- 3925 LBS.
  • BOOM LIFT CAPACITY (END OF DIPPER 3’ FROM GROUND)- 750 LBS.
  • HYDRAULIC VOLUME REQUIREMENTS- 5-7 GPM*
  • RECOMMENDED TRACTOR HP- 45-100 HP
  • BUCKET SIZES AVAILABLE- 9, 12, 15, 18, 24
  • SAFETY FEATURES:

  • Stabilizer Width: 89”
