XD95EL XD SERIES BACKHOE

Description

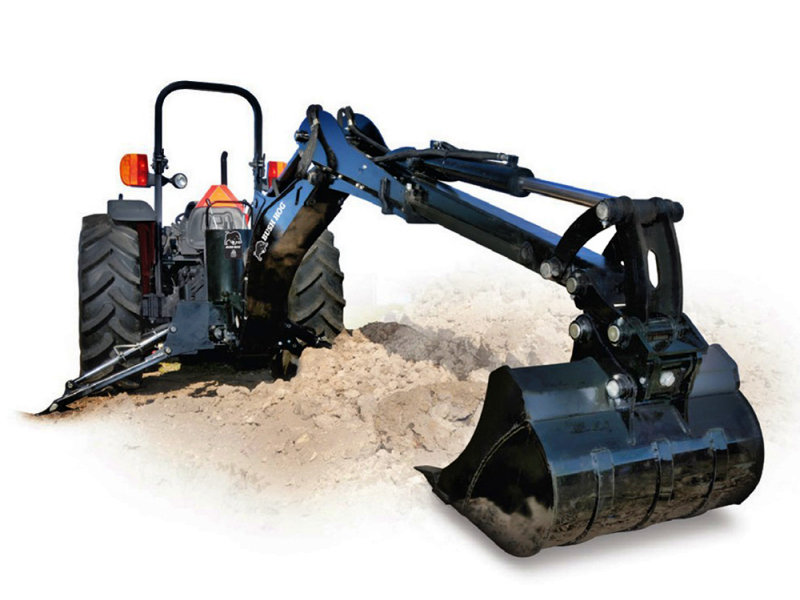

BUSH HOG® XD95 XD SERIES BACKHOE Break ground, not your back! Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for digging footers, trenches and all general landscaping and construction needs, the XD series backhoes deliver value and strong performance to your operation. The Bush Hog® digs even deeper with the Extendable XD95EL model. Capable of hydraulically extending an extra 24” to dig 11’ 4” deep, the extendable dipper stick gives you the extra reach when you need it. When contracted, the bucket and dipper stick curl up tight to the boom for easy travel and compact storage.

PERFORMANCE FEATURE:

  • TRANSPORT HEIGHT (WITH BOOM FULLY RETRACTED)- 92”
  • TRANSPORT WIDTH (WITH STABILIZERS UP)- 42½”
  • LOADING HEIGHT (BUCKET AT 60° ROTATION)- 89”/104"
  • GROUND CLEARANCE- 10 1/2”
  • TRANSPORT LENGTH- 81”
  • TRANSPORT WEIGHT (BASE UNIT ONLY – NO BUCKET OR MOUNTS)- 1000 LBS.
  • DIGGING DEPTH (2 FT. FLAT BOTTOM)- 9’4” / 11'4"
  • OVERALL OPERATING HEIGHT (FULLY RAISED)- 135” / 152"
  • REACH FROM SWING POST- 141” / 164"
  • BUCKET ROTATION- 180°
  • SWING ARC- 180°
  • STABILIZER WIDTH (SPREAD)- 89”
  • STABILIZER WIDTH (TRANSPORT) - 42½””
  • OPERATING PRESSURE- 2250 PSI
  • SAE* DIPPER BOOM DIGGING FORCE- 3100 / 2200 LBS
  • SAE* BUCKET DIGGING FORCE- 3925 LBS.
  • BOOM LIFT CAPACITY (END OF DIPPER 3’ FROM GROUND)- 710 / 510 LBS.
  • HYDRAULIC VOLUME REQUIREMENTS- 5-7 GPM*
  • RECOMMENDED TRACTOR HP- 45-100 HP
  • BUCKET SIZES AVAILABLE- 9, 12, 15, 18
  • SAFETY FEATURES:

  • Stabilizer Width: 89”
  • Financing Available
  • "CLICK HERE FOR PARTS"

    Click Here to download a brochure.
