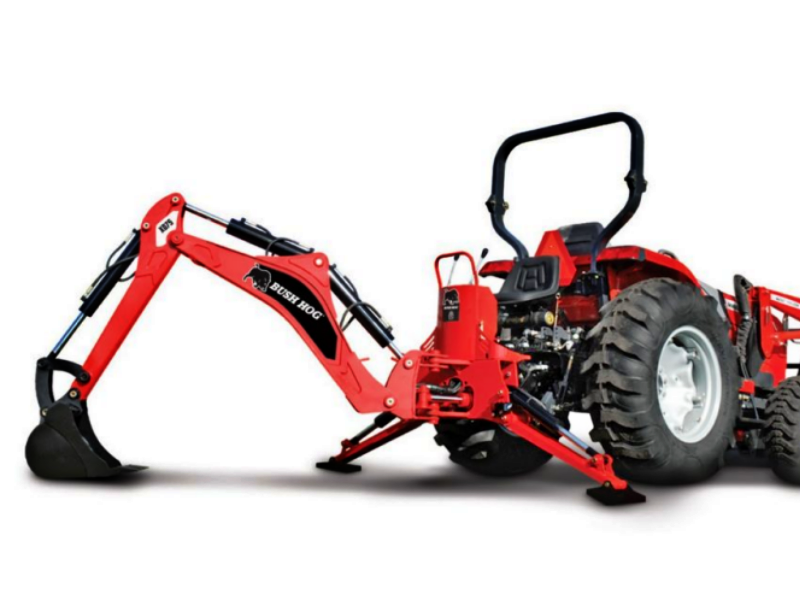

BUSH HOG® XD75 XD SERIES BACKHOE
Break ground, not your back! Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors
ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for digging footers, trenches and all general landscaping and construction needs, the XD series backhoes deliver value and strong performance to your operation. Digging 7.5 feet deep and reaching 10 feet across, the XD75 breaks ground and keeps on going. With an excavator-style curved boom and easy-to-use controls, the XD75 is ready to handle any ground conditions from topsoil to clay and gravel.
PERFORMANCE FEATURE:
TRANSPORT HEIGHT (WITH BOOM FULLY RETRACTED)- 79”
TRANSPORT WIDTH (WITH STABILIZERS UP)- 42½”
LOADING HEIGHT (BUCKET AT 60° ROTATION)- 80”
GROUND CLEARANCE- 10 1/2”
TRANSPORT LENGTH- 80”
TRANSPORT WEIGHT (BASE UNIT ONLY – NO BUCKET OR MOUNTS)- 800 LBS.
DIGGING DEPTH (2 FT. FLAT BOTTOM)- 7’8”
OVERALL OPERATING HEIGHT (FULLY RAISED)- 119”
REACH FROM SWING POST- 123”
BUCKET ROTATION- 180°
SWING ARC- 180°
STABILIZER WIDTH (SPREAD)- 89”
STABILIZER WIDTH (TRANSPORT) - 42½””
OPERATING PRESSURE- 2250 PSI
SAE* DIPPER BOOM DIGGING FORCE- 2300 LBS.
SAE* BUCKET DIGGING FORCE- 3800 LBS.
BOOM LIFT CAPACITY (END OF DIPPER 3’ FROM GROUND)- 925 LBS.
HYDRAULIC VOLUME REQUIREMENTS- 3½-6GPM*
RECOMMENDED TRACTOR HP- 30-60 HP
BUCKET SIZES AVAILABLE- 9, 12, 15, 18, 24
SAFETY FEATURES:
Stabilizer Width: 89”
