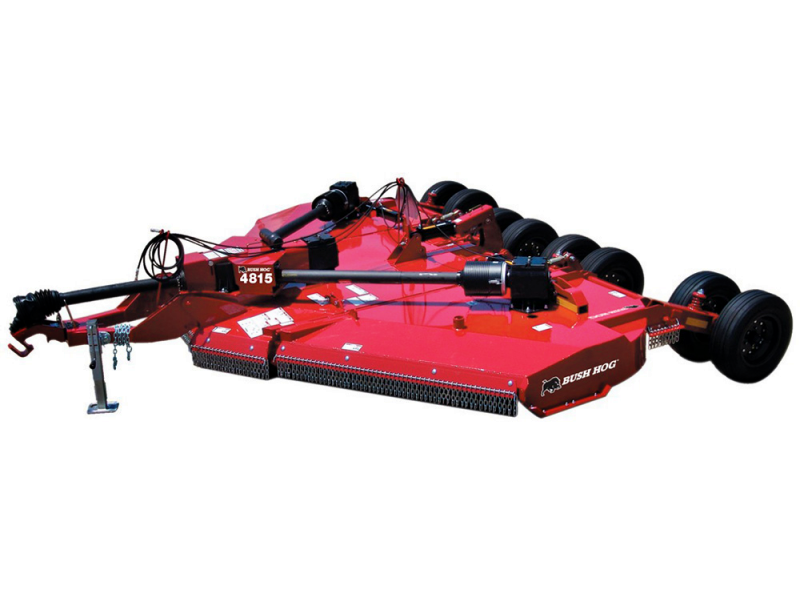

4815 FLEX-WING ROTARY CUTTER

Description

BUSH HOG® 4815 FLEX-WING ROTARY CUTTERS THE EXTREME HEAVY DUTY The 4815 is the toughest Bush Hog® built Flex-Wing. Built for the roughest and toughest use, the 4815 is for those users who require the strongest 15 ft. Flex-Wing. The roughest right of way or agricultural cutting is no challenge for this unit that’s built to take the ground pounding heavy use every day! See the back page for specifications and features that set the 4815 above all other 15 ft. Flex-Wings regardless of brand. Bush Hog® – Performance You Can Count On.

PERFORMANCE FEATURE:

  • Wing and center skids are 3/8-inch thick for extended wear and outside edges are turned up at 45 degrees to stop heavy ground contact that might damage the sidebands.
  • Center section axle spindles are centered on the axle arm for equalized loading of vertical forces.
  • Grease fittings and spring steel bushings at axle pivot points for longer life.
  • Free wing float without movement of the hydraulic cylinder rod is 22° down and 45° up.
  • Improved suspension that absorbs more shock loads at the tires.
  • CONSTRUCTION FEATURES:

  • Heavy structure on center section and wings.
  • Wing skids are 3/8” thick with an outside angle of 45 degrees to stop “ground dig-in” during turns.
  • All axle spindles are half shafts for quick and less costly maintenance.
  • Center section blades align closely with outside center tires to closely cut out the bottom of ditches.
  • Grease fittings and spring steel bushings are at axle pivot points for longer life.
  • Each cutting gearbox has a 3 inch output shaft with more and deeper splines than competitor models for maximum torque load capabilities.
  • All drivelines are EZ lube with grease points aligned and the cross bearing fitting is in the end cap.
  • SAFETY FEATURES:

  • Highway Safety Lights Standard
