XD65 XD SERIES BACKHOE

Description

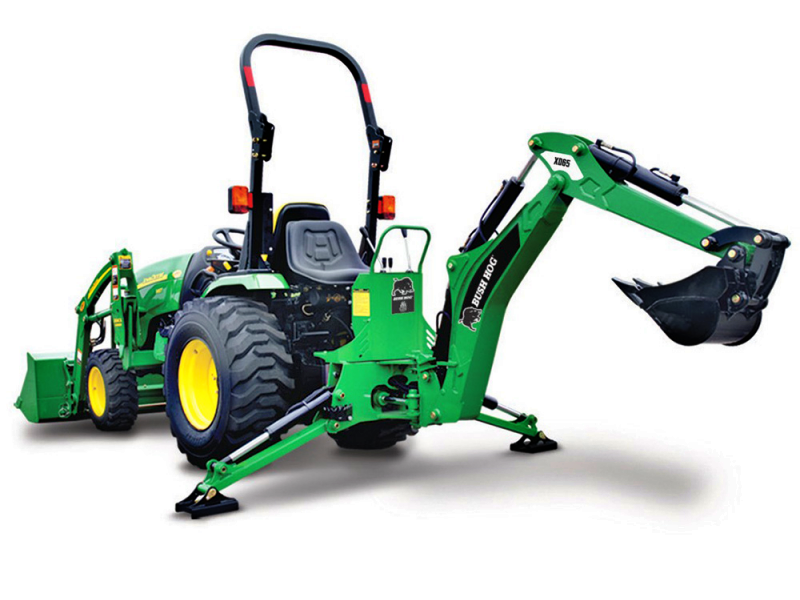

BUSH HOG® XD65 XD SERIES BACKHOE Break ground, not your back! Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for digging footers, trenches and all general landscaping and construction needs, the XD series backhoes deliver value and strong performance to your operation. With a digging depth of 6 feet and an 8-foot reach, the XD65 gets down and dirty, breaking the frostline and finishing the job quickly.

PERFORMANCE FEATURE:

  • TRANSPORT HEIGHT (WITH BOOM FULLY RETRACTED)- 63”
  • TRANSPORT WIDTH (WITH STABILIZERS UP)- 40”
  • LOADING HEIGHT (BUCKET AT 60° ROTATION)- 62”
  • GROUND CLEARANCE- 10 1/2”
  • TRANSPORT LENGTH- 68”
  • TRANSPORT WEIGHT (BASE UNIT ONLY – NO BUCKET OR MOUNTS)- 575 LBS.
  • DIGGING DEPTH (2 FT. FLAT BOTTOM)- 6’4”
  • OVERALL OPERATING HEIGHT (FULLY RAISED)- 92”
  • REACH FROM SWING POST- 100”
  • BUCKET ROTATION- 180°
  • SWING ARC- 180°
  • STABILIZER WIDTH (SPREAD)- 74”
  • STABILIZER WIDTH (TRANSPORT) - 40”
  • OPERATING PRESSURE- 1800 PSI
  • SAE* DIPPER BOOM DIGGING FORCE- 1250 LBS.
  • SAE* BUCKET DIGGING FORCE- 20600 LBS.
  • BOOM LIFT CAPACITY (END OF DIPPER 3’ FROM GROUND)- 385 LBS.
  • HYDRAULIC VOLUME REQUIREMENTS- 7-5 GPM*
  • RECOMMENDED TRACTOR HP- 18-30 HP
  • BUCKET SIZES AVAILABLE- 9, 12, 15, 18
  • SAFETY FEATURES:

  • Stabilizer Width: 72”
  • Financing Available
  • "CLICK HERE FOR PARTS"

    Click Here to download a brochure.
