Description
Case IH Nutri-Tiller 955 and 5310 are your one-pass seedbed solutions to improve soil tilth so air and water move freely and your planter can do its job placing the seed at the proper depth and creating good seed-to-soil contact.High Efficiency Crop Production Strip-till delivers the agronomic advantages of conventional tillage with the conservation and cost benefits of no-till. When properly adapted to local conditions, strip-till conserves soil, reduces production costs and saves time. Bringing you optional Working Widths from 15' - 60', with 6 - 24 Rows, 24" diameter Coulters and a 30" Row Spacing.
CURRENT MODELS:

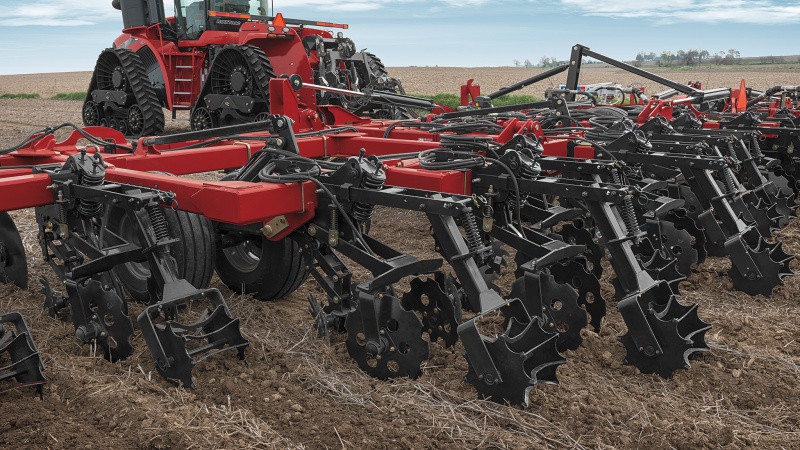

Nutri-Tiller 955- The Nutri-Tiller 955 Strip-Till applicator is a one-pass seedbed solution that helps effectively manage time, resources and inputs for improved productivity and greater return on investment.
Nutri-Tiller 5310- The Nutri-Tiller 5310 Strip-Till Applicator, with 6 or 8 row, 3-point hitch mounted frame style, boosts your fertilizer dollar while keeping soil in its place. Custom-fit options help you handle your residue management practices.
FRAME DESIGN: Flexibility and Durability Drive Consistency, Durability, Adjustability and Flexibility each play a critical role in any tillage equipment’s success. When it comes to strip-till implements, expectations are high, and rightfully so — you have one pass to get it right. We designed the frame to help ensure the Nutri-Tiller exceeds expectations.
FRAME CONSTRUCTION: Designed to Exceed Expectations
The Nutri-Tiller 955 is available in 8-, 12-, 16-, and 24-row working widths.
The toolbar on the 12- and 16-row models flex in three sections — and the 24-row model flexes in five sections — for excellent ground-following.
Flexibility to stagger Coulters and row units for improved crop residue flow and faster operating speeds.
Durable Features-
Steel, welded bridge construction results in a stronger frame.
Rounded gussets provide increased toolbar strength.
Three ranks of tubing add strength, stability, and flexibility for improved crop residue flow and faster operating speeds.
LEVELING & DEPTH CONTROL: Easy Adjustments to Match Conditions
Single-point depth control provides for quick adjustments and allows you to easily change settings according to changing fields and conditions. Plus, an independently adjusted leveling control for inner wing gauge wheels provides greater simplicity and durability. The 60-foot unit includes a turnbuckle for front-to-back toolbar leveling.
ROW UNIT: A Row Unit That Sets the Stage for Your Success
From the moment the Coulter meets that top layer of soil and crop residue until a well-conditioned berm emerges, the objective is to create an ideal environment to get your crop get off to a fast, uniform start. Row unit components work in harmony to create optimal agronomic conditions in a single, high-efficiency pass.
Coulter-
Large, 24-inch Coulter successfully cuts through tough residue.
Independent mounting and a set-screw design lock in depth settings.
Down-pressure spring provides reliable penetration for consistent fertilizer placement.
The durable row unit provides the right mix of soil, air and water, while precisely placing fertilizer and the result is a 10-inch strip surface that’s ready for planting.
Residue Management-
Row cleaner effectively moves high levels of residue without gouging or riding above residue.
Two adjustable down-pressure spring settings help match row cleaner aggressiveness to field conditions.
Ability to float or stow row cleaners above the soil surface for lighter residue levels, such as soybean stubble.
Shank-
High-clearance Shank for Strip-Till (HCS ST) maintains a constant tillable depth for accurate nutrient placement.
A 1¼ by 2 inch edge-bent shank and an improved mounting design, ensure the knife and shank stay aligned for pass-to-pass accuracy.
Knife adapter shifts the shear point from the knife-mount bolts to the knife adapter, greatly reducing shear bolt or knife breakage.
BERM DESIGN: Building the Best Berm Our goal was to design a strip-till system that creates the ideal environment for your crop. That means a uniform berm that’s properly shaped and sized. It also means a soil profile with increased pore space and improved soil tilth.
The Ideal Berm-
Berm Build’r creates uniform berms that are properly shaped and sized, while increasing pore space for improved soil tilth.
Die plates mounted to the HCS ST ensure that the disks remain in position relative to the shank, always catching and containing the soil and shaping the berm.
Concave, 18-inch notched sealing disks feature holes on the disk face to reduce moist soil buildup and the need to clean.
Optional, concave 18-inch unsharpened disks without holes available for less aggressive tillage.
Finishing the Berm-
Berm Condition’r breaks down and sizes clods, providing a uniform seedbed for optimal germination and uniform emergence with two berm condition basket options.
Large, 14-inch rolling baskets catch soil flowing out of the Berm Build’r, keep it within the tilled area, smooth berm tops and finalize the seedbed before planting.
Best for fall: The concave design provides benefits of a rolling basket but leaves more pore space as the berm overwinters.
Best for spring: The flat-bar options provides more clod fracturing and sizing, helps settle the soil, and firm the berm.
FERTILIZER ATTACHMENTS: Field-Ready to Deep-Band Dry Fertilizer Take the next step toward high-efficiency crop production by pairing the Nutri-Tiller 955 with the Case IH Precision Air 5 series air cart. With this air package, you can apply up to three products in one pass: two dry fertilizers, plus anhydrous ammonia.
Easy-to-fasten, over center latches provide easy coupling and a consistent, secure connection.
Dimpled Y-splitters agitate air and product flow, providing a consistent mix for delivery down to the knife.
Diffusers above the knife help the product drop freely to the trench floor to provide a consistent fertilizer band at the proper depth.
An optional blockage monitor provides feedback via ISOBUS to the AFS Pro 700.
AFS TECHNOLOGY: Control, Monitor and Record from autoguidance that helps keep your strips straight to variable-rate application that helps you achieve fertilizer efficiency to a fully integrated platform that gathers data during every phase of production, Case IH Advanced Farming Systems (AFS) is the ideal strip-till companion.
Guidance and Steering-
Achieve year-to-year repeatable accuracy at sub-inch levels with AFS AccuGuide autoguidance.
Auto-guidance reduces skips and overlaps; saves on fuel and labor costs; better manages your seed, fertilizer and chemical inputs; simplifies operation; and increases productivity.
Data Management and Analysis-
View, edit, manage, and analyze your real-time, precision farming data in a single suite with AFS software.
Generate yield maps, prescription maps and more from a single, integrated software package.
Create soil sampling maps, generate and print reports, and import satellite imagery.
Section and Rate Control-
Accurately place fertilizer and other inputs.
Reduce overlaps with variable-rate application to help improve efficiency and lower overall costs.
Variable-rate applications of up to three products — two granular and one anhydrous — results in fewer trips across the field.
