Windrower Sicklebar Headers

Description

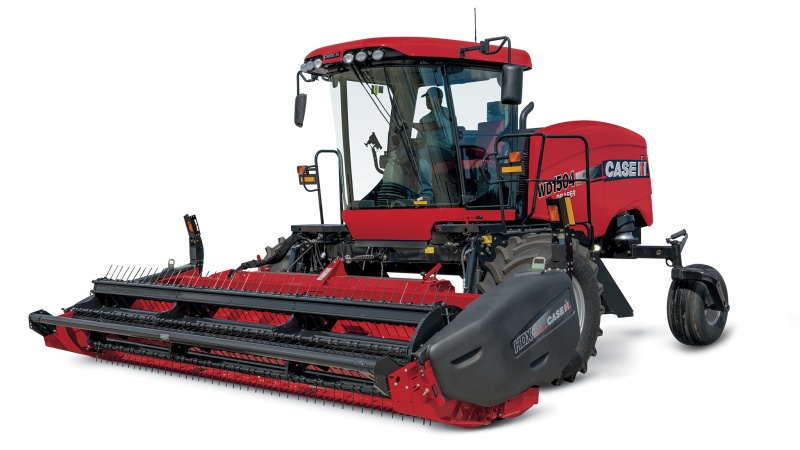

Case IH Windrower HDX 2 series sicklebar headers, built for heavy crop conditions, use the counter-stroking action of dual sickles to shear crop cleanly while the unique floating auger keeps the crop moving smoothly to the conditioning rolls. With 3 model options from 14'3" to 18'3" cutting widths, 1.2"- 6.2" cutting height, 1,810 spm Sickle speed and a 6-12 degree angle range. Making your maximum cutting for more acres in less time.

CURRENT MODELS:

HDX142- For quality harvesting results, combine the 14 ft HDX142 Sicklebar Header with a Case IH WD4 self-propelled windrower.

HDX162- Treat your hay to smooth cutting and gentle handling with the 16 ft HDX162 Sicklebar Header.

HDX182- The 18 ft HDX182 Sicklebar Header provides quality cutting at uncompromising speed for even heavy crop conditions.

CUTTERBED:The Case IH HDX 2 Sicklebar Herder uses a counter-stroking action of dual sickles to shear crop cleanly while a unique floating auger keeps the crop moving smoothly.

Heavy-duty wobble drives ensure long, trouble-free life

Bolt-on knife sections are standard for easy replacement.

Over-serrated knife sections provide long life and a clean cut

Double heat-treated range guards provide superior resistance to rock damage

The cutterbar angle adjusts hydraulically from 6 to 12 degrees below horizontal

Available stub-on-stub guards penetrate tough, tangled crops

Unique Floating Auger- Unique floating auger to keep the crop flowing smoothly to the conditioning rolls

20 in (508 mm) auger with 5 in (178 mm) flighting

Auger floats up to 2 in (50.8 mm) to let slugs of material pass underneath without plugging

Auger slip clutch protects auger and drive system

Skid Shoes- Skid shoes feature five position adjustments

Combine this with the hydraulic adjustable header and you can adjust guard angle and cut height from 1.2 – 6.2 in (30.5 – 157 mm).

Available Options for the WD3 and the HDX 2 Series-

In-cab control of reel speed.

In-cab control of windrow width.

Header gauge wheels.

Tall-crop lean bar kit.

Crop dividers.

BUILT TO WORK IN HEAVY CROP CONDITIONS: The HDX 2 Series Sicklebar Headers feature a conditioning system that is built to work in heavy crop conditions. Conditioning rolls crimp stems thoroughly for fast dry down. The roll pressure system uses a torsion bar, which allows conditioning rolls to automatically separate to clear slugs and the chevron pattern provides even windrow formation.

Rubber-on-Rubber- Rubber-on-rubber conditioning rolls are available on all models for a thorough, gentle cleaning

Steel-on-Steel- Steel-on-steel rolls are available on all models except the HDX122 for tough and versatile for a wide range of demanding crops

Hi-Contact Rolls- Hi-contact rolls are available on all models except the HDX122 for complete crush of plant stem; ideal for legume-type crops
